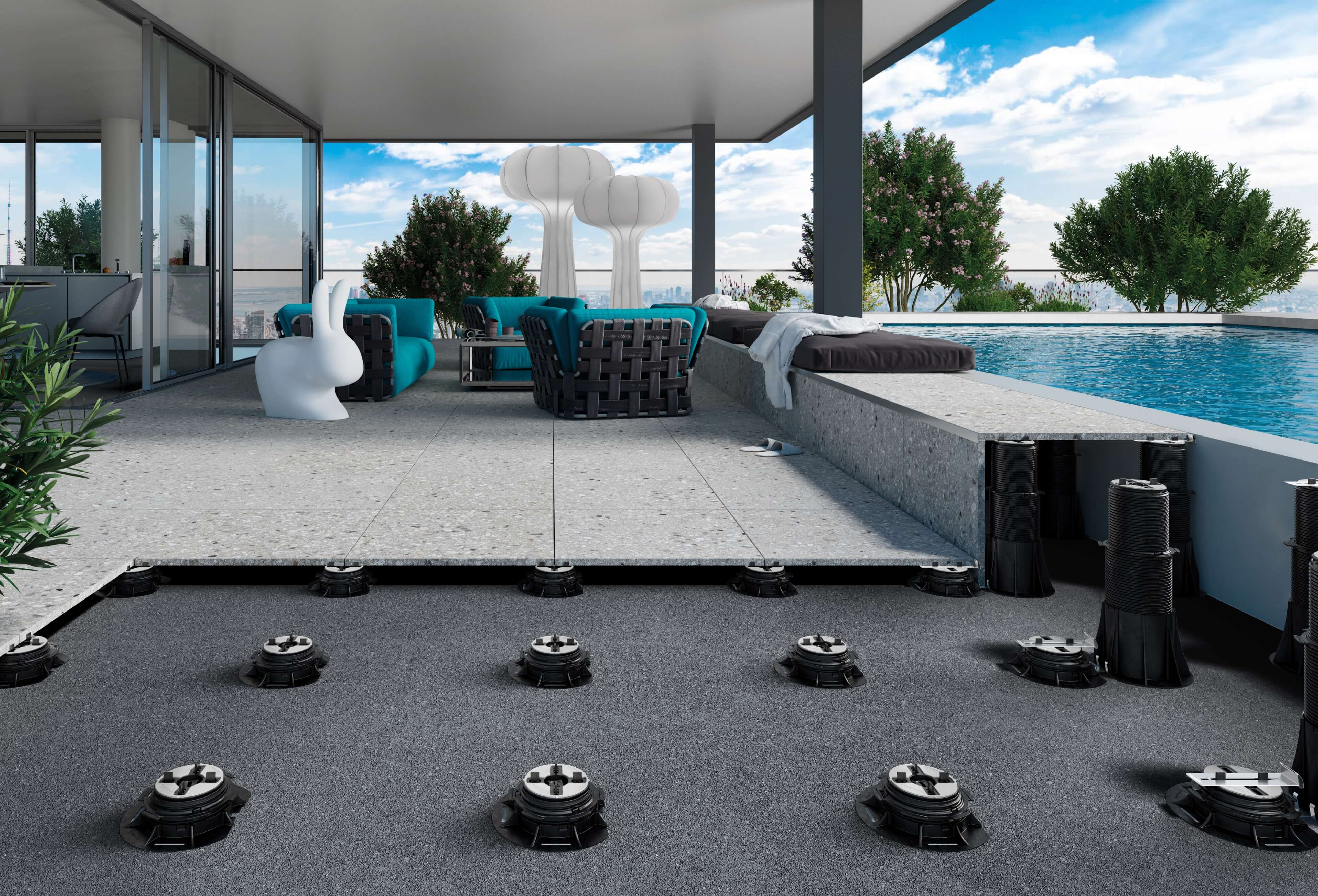

Lq Attico
Adjustable Height Pedestal

NM Series

The NM Pedestal Series, with fixed head, can be adjusted to the millimetre in height by the use of the reinforced adjustment key, while any imperfections or inclines in the substrate can be compensated using the Twist Slope Compensator disc (TW110), adjustable with a simple twist.

Boasting a wide range of features that render it perfect for any number of raised flooring applications, including a Bi-material PP + Rubber anti-noise and anti-slip head, an adjustable height screw system that allows changes from above the finished floor, a pre-cut base for wall corner cuts and an above average tensile strength and a reliability that can only be offered by experts in the field of raised flooring supports, this product is regularly selected and widely appreciated throughout the building industry worldwide.

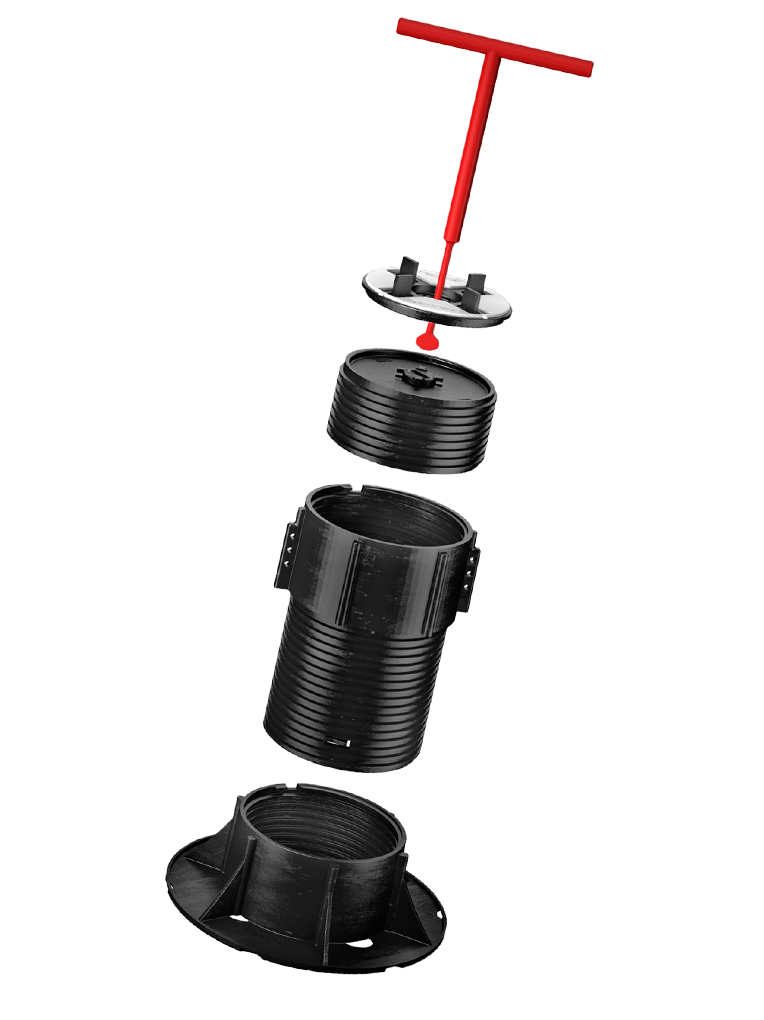

Nm Product Listings Image

Advantages.

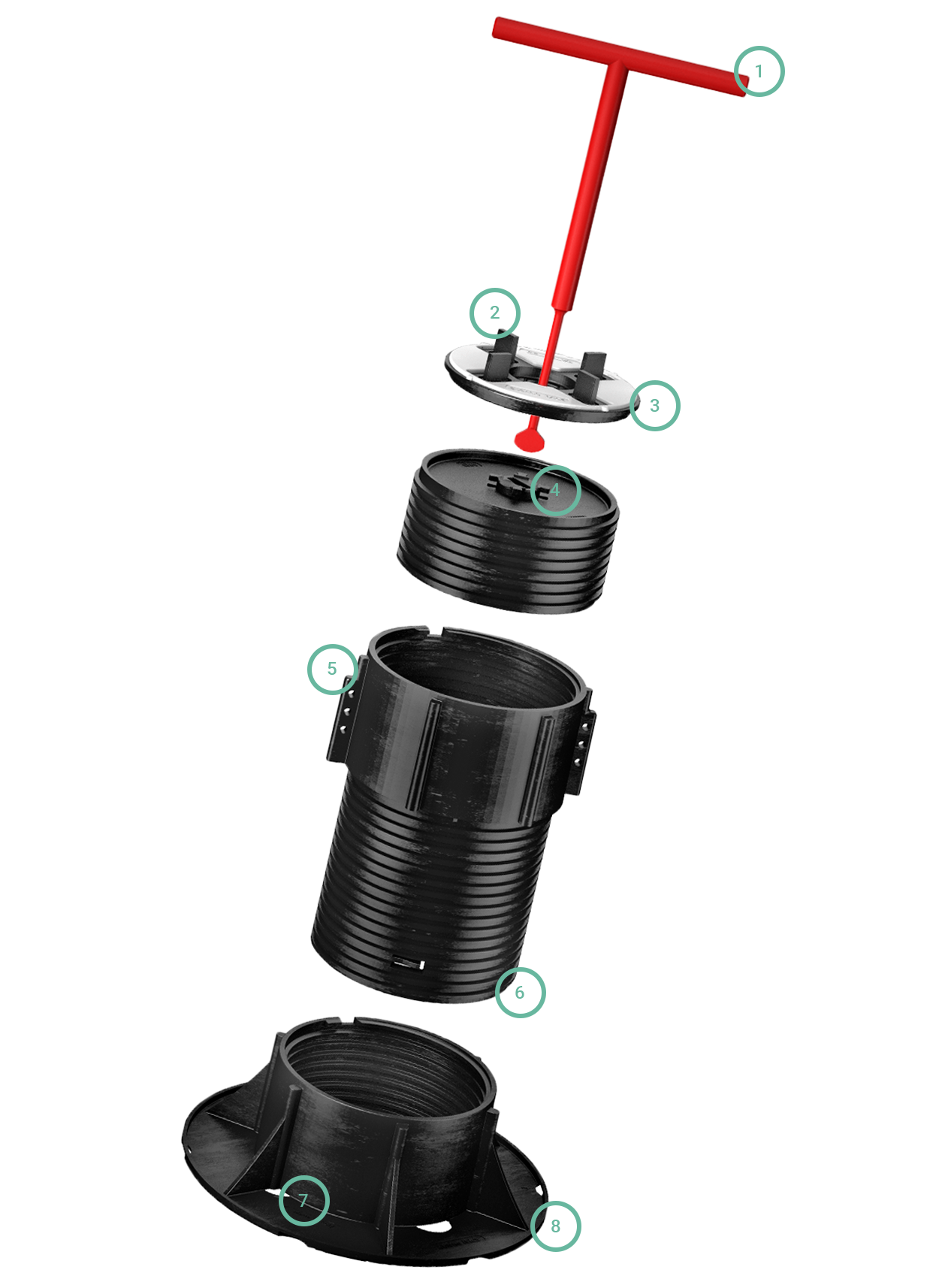

Product advantages
Overview.
  1. Reinforced Adjustment Key
  2. Pre-cut tabs for easy removal
  3. Bi-material, PP + Rubber anti-noise and anti-slip head.
  4. Coupling head to screw attachment system
  5. PNM Extension capable of accommodating heights up to 930mm
  6. Adjustable height screw system
  7. Water drainage holes
  8. 205mm diameter / 320 cm2 smooth base support


Benefits.
  • Finished floor height can be adjusted post installation thanks to the exclusive readjustment key system
  • Unique head design with non-slip and anti-noise rubber top
  • Use with TW110 to compensate for floor gradients of up to 2%
  • Entirely recyclable
  • Resistant to acids and ultraviolet deterioration
  • Resistant to temperatures ranging from -40 °C to +120°C
  • Suitable for any self-supporting outdoor paving system
  • Tile spacing tabs are strong, stable and easily removable
  • Indicator lines on base make cutting easy when installing pedestals into corners or end walls.

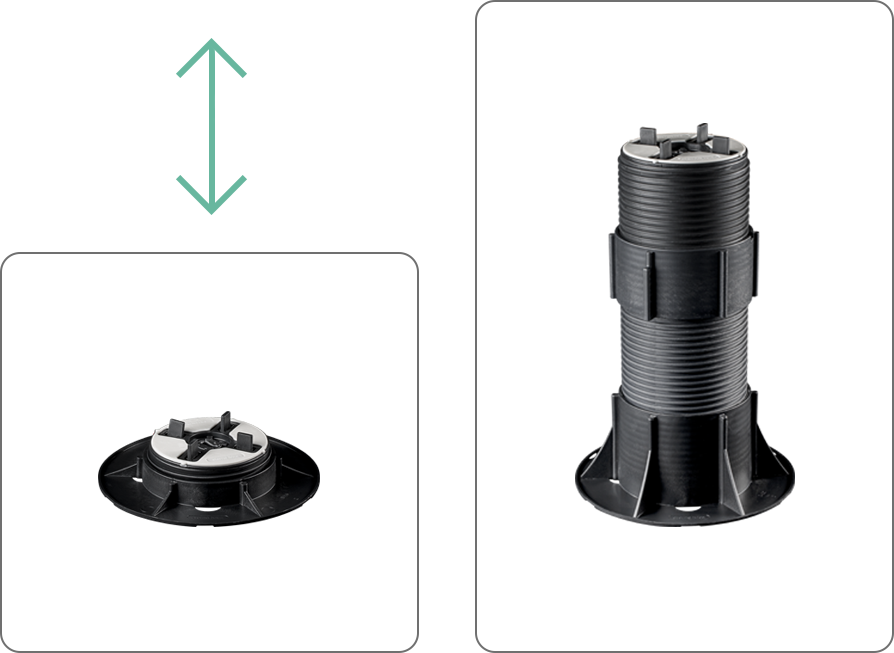

25-930mm
Height Range
Product Range
Height
Product
Technical

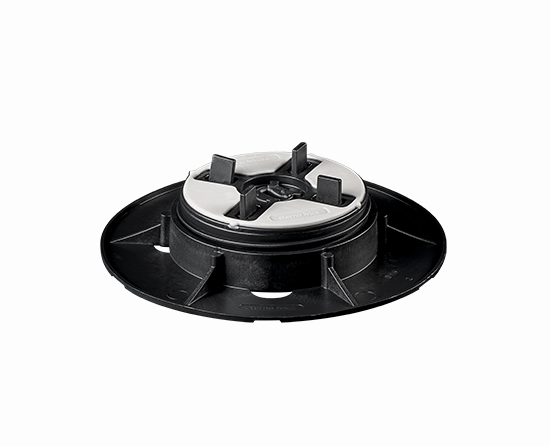

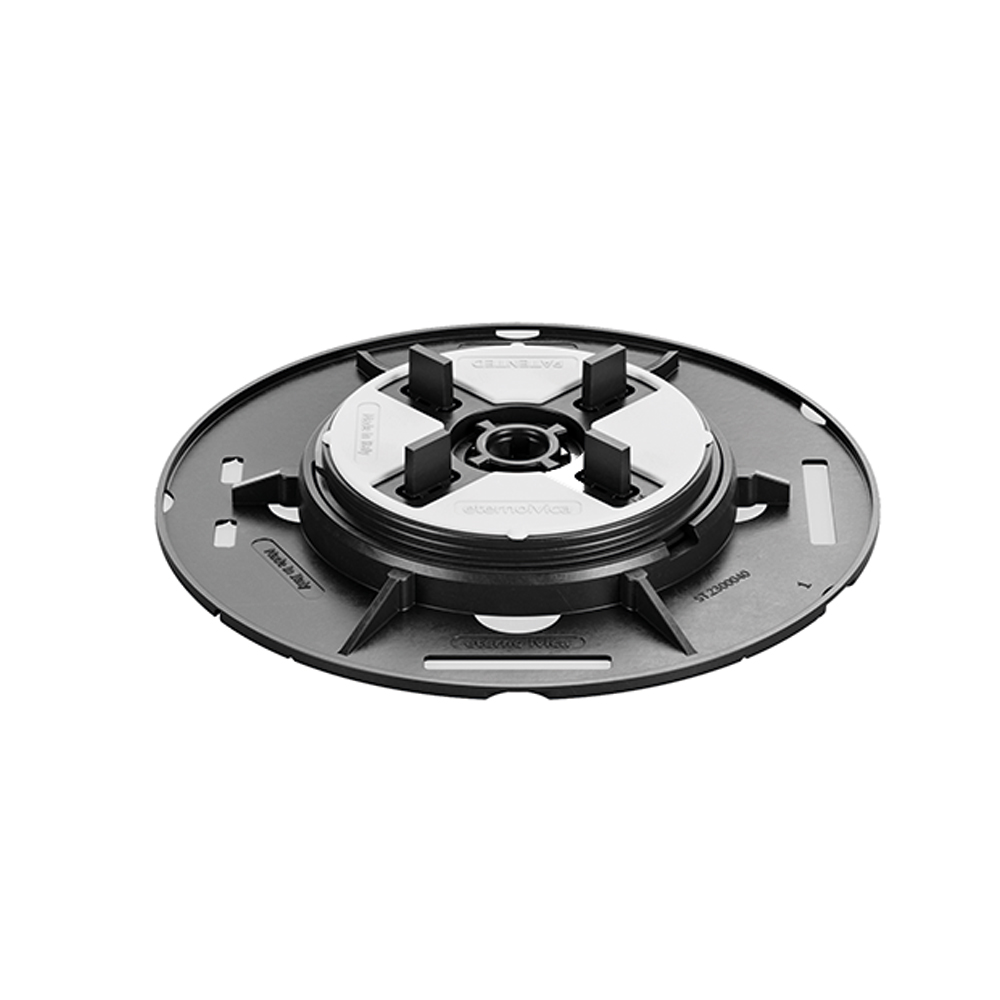

NM Series 25 - 40 mm
NM1

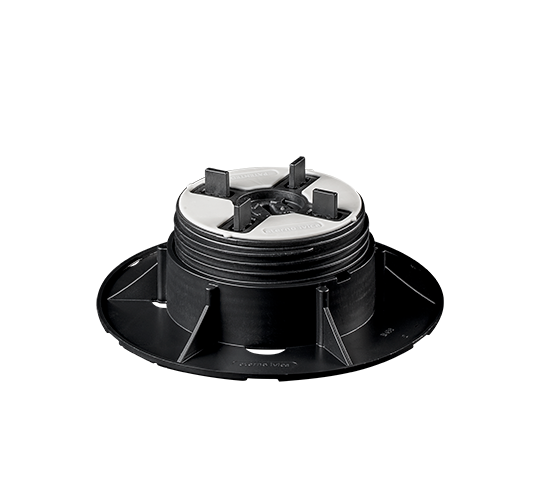

NM Series 40 - 70 mm
NM2

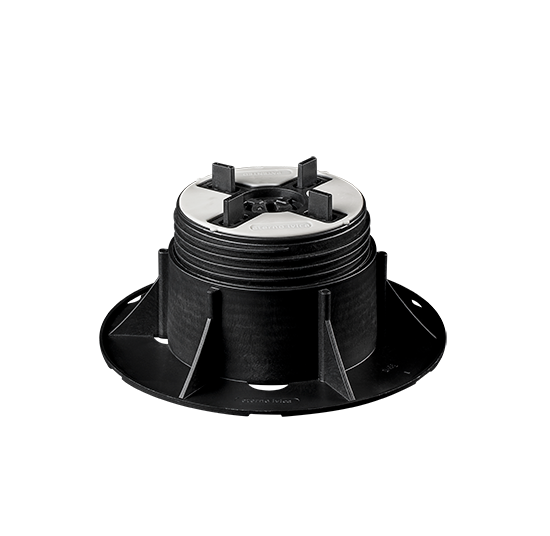

NM Series 60 - 100 mm
NM3

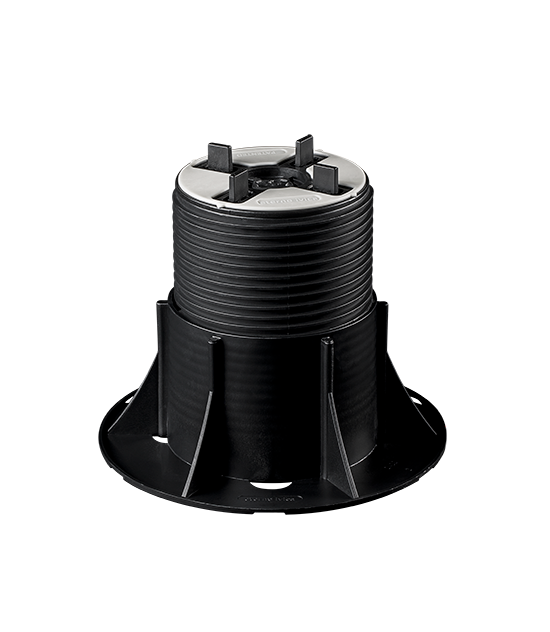

NM Series 90 - 160 mm
NM4

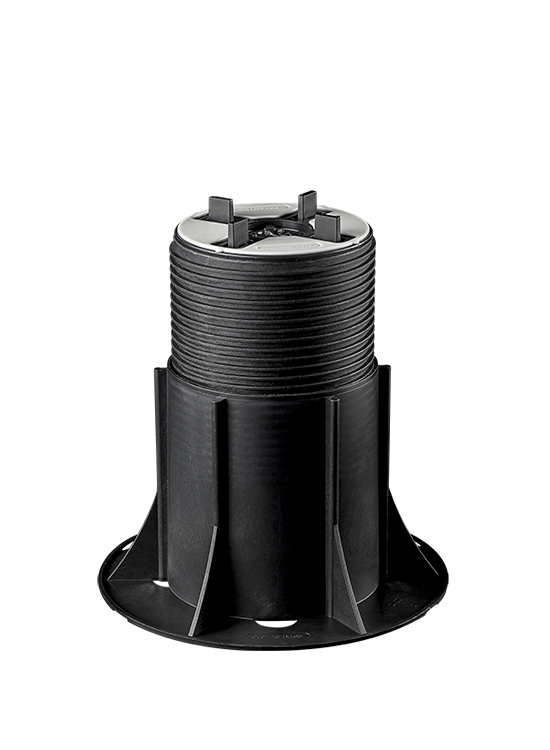

NM Series 150 - 270 mm
NM5

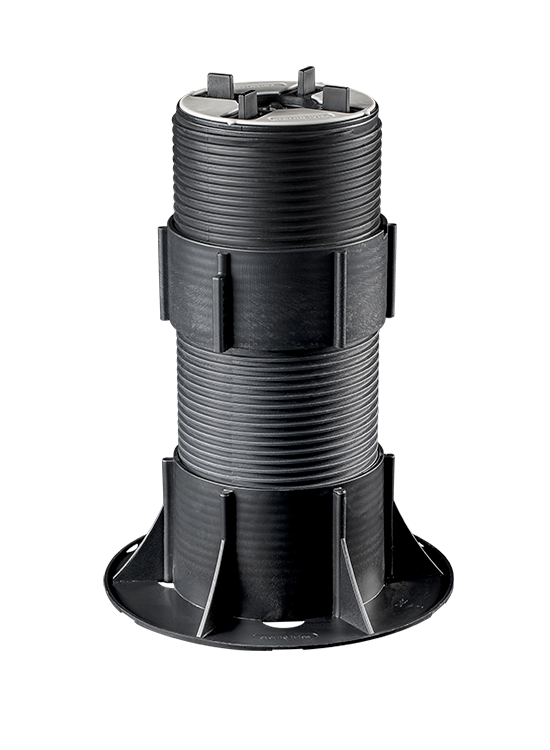

NM Series Extendable to 930 mm
NM with PNM Extension
