Composite Cladding

Castellation Cladding

Castellation is a type of cladding that has a castellation profile. Viewed end-on, it looks similar to the series of alternating parapets and indentations you would see on the top of a castle wall (hence the name).

When viewed on a building façade, castellation cladding is made up of parallel spaced battens with a shadow line or recess between each, which gives the façade an attractive multi-dimensional appearance.

Castellation cladding can be installed horizontally or vertically and due to its visually appealing look, it’s a style that’s enjoying a resurgence in popularity in both commercial and residential building design.

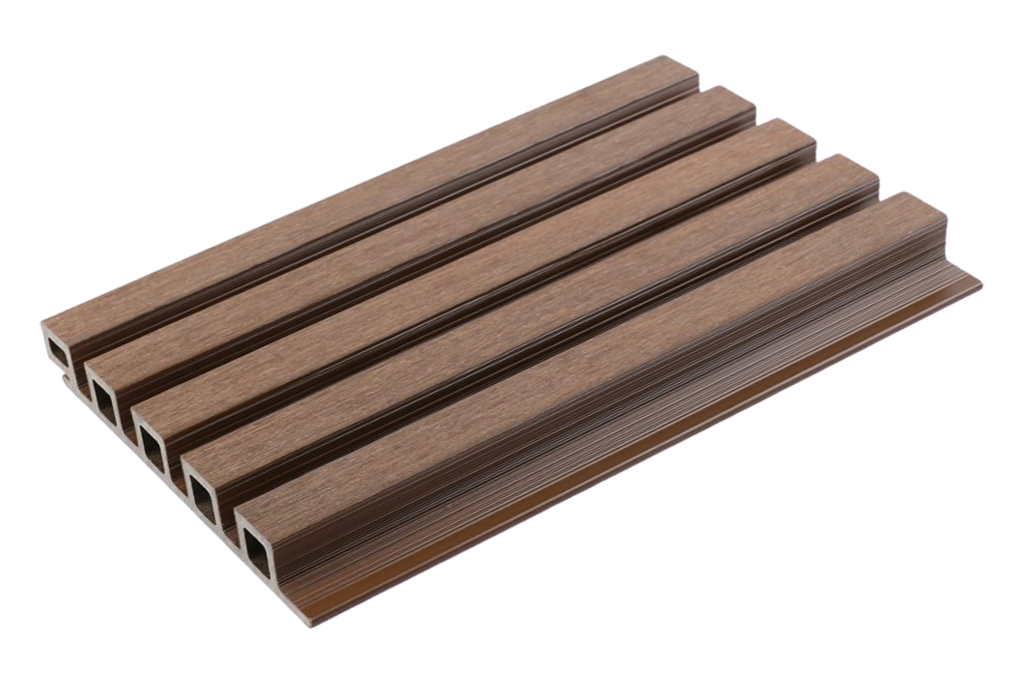

Keksia Cladding Castellation V2

COLOUR RANGE

Explore our range of colours below.

The above colour swatches are indicative only and may vary in appearance according to your computer screen. Visit one of our display centres and request a free sample, noting that there may be small variations between batches.

Features

Castellation Cladding

  1. Fully finished product - no painting, no oiling
  2. Easily create timber look feature wall or lining
  3. Long Lasting - 25 year residential warranty
  4. UV protection
  1. Residential and commercial applications
  2. Matching end and corner trims
  3. Easy installation with concealed fixings
  4. Environmentally friendly - made from 95% recycled materials

Specifications

View our selection of profiles and product specifications.

Profile Profile Code Description Dimensions Length Finish LM p/m2 Secret Fix Max Span Weight p/LM
Castellation Cladding board – 25mm x 12.5mm UH61 Castellation Cladding board – 25mm x 12.5mm 196mm x 25mm 5.4m H1 1.0584 Yes 500mm 2.7kg
Castellation Cladding board – 50mm x 12.5mm UH58 Castellation Cladding board – 50mm x 12.5mm 196mm x 25mm 5.4m H1 1.0584 Yes 500mm 2.7kg
Aluminium End Cover Trim for UH61/UH58 CA63 Aluminium End Cover Trim for UH61/UH58 40mm x 58mm 3m H1 N/A N/A N/A N/A
Aluminium End Base for US31/UH61/UH58 AA44 Aluminium End Base for US31/UH61/UH58 42mm x 17.9mm 3m Mill Finish N/A N/A N/A N/A
Aluminium Outside Corner Cover Trim for US31/UH61/UH58 CA51 Aluminium Outside Corner Cover Trim for US31/UH61/UH58 50mm x 50mm 3m H1 N/A N/A N/A N/A
Aluminium Outside Corner Base for UH61/UH58 AA62 Aluminium Outside Corner Base for UH61/UH58 51mm x 51mm 3m Mill Finish N/A N/A n/a N/A
Aluminium Inside Corner Cover Trim for US31/UH61/UH58 CA50 Aluminium Inside Corner Cover Trim for US31/UH61/UH58 67.8mm x 45.3mm 3m H1 N/A N/A N/A N/A
Aluminium Inside Corner Base for UH61/UH58 AA61 Aluminium Inside Corner Base for UH61/UH58 45mm x 45mm 3m Mill Finish N/A N/A n/a N/A
Aluminium Butt Joint Cover Trim for US31/UH61/UH58 CA49 Aluminium Butt Joint Cover Trim for US31/UH61/UH58 35mm x 16mm 3m H1 N/A N/A N/A N/A
Aluminium Butt Joint Base for US31/UH61/UH58 AA60 Aluminium Butt Joint Base for US31/UH61/UH58 34mm x 33mm 3m Mill Finish N/A N/A n/a N/A
slide-left icon

Swipe to view all info.

PDF File

Castellation Cladding - Installation Guide

What is cladding?

Cladding is an extra layer applied to the outside of buildings to protect it from the elements and enhance the facade of residential and commercial structures. In many cases, cladding is used to provide a degree of thermal insulation and weather resistance to new and existing buildings as well as to improve their cosmetic appearance. Less frequently, cladding may be used for noise insulation. Many different types of materials can be used for cladding with the most common being wood, metal, brick, vinyl, and composite materials.

Where would you install castellation cladding?

Castellation composite cladding is an external wall cladding primarily used on facades, ceilings, and other features such as garage doors, stand-alone feature walls etc. The finished product provides a high-end look in a range of different colours, without the need for periodic maintenance common with other products. It also utilizes a hidden clip system to provide you a seamless finish.

What colours of castellation cladding are available?

The castellation cladding comes in Aged Wood, IPE, Oak & Silver Ash.

How is cladding installed?

Adding cladding to your home is not necessarily an easy feat, which is why so many turn to professionals for installation. It can take quite a bit of planning and prep to ensure that your building's facade is cosmetically appealing and structurally sound. Before you get started you'll need to gather a series of tools including claw hammers, pliers, ladders and scaffolds, crowbars, tape measurer, utility knife, and a hacksaw. To add cladding to your home, first measure the area, complete sheathing, install insulation then begin on adding the cladding material of your choice.
